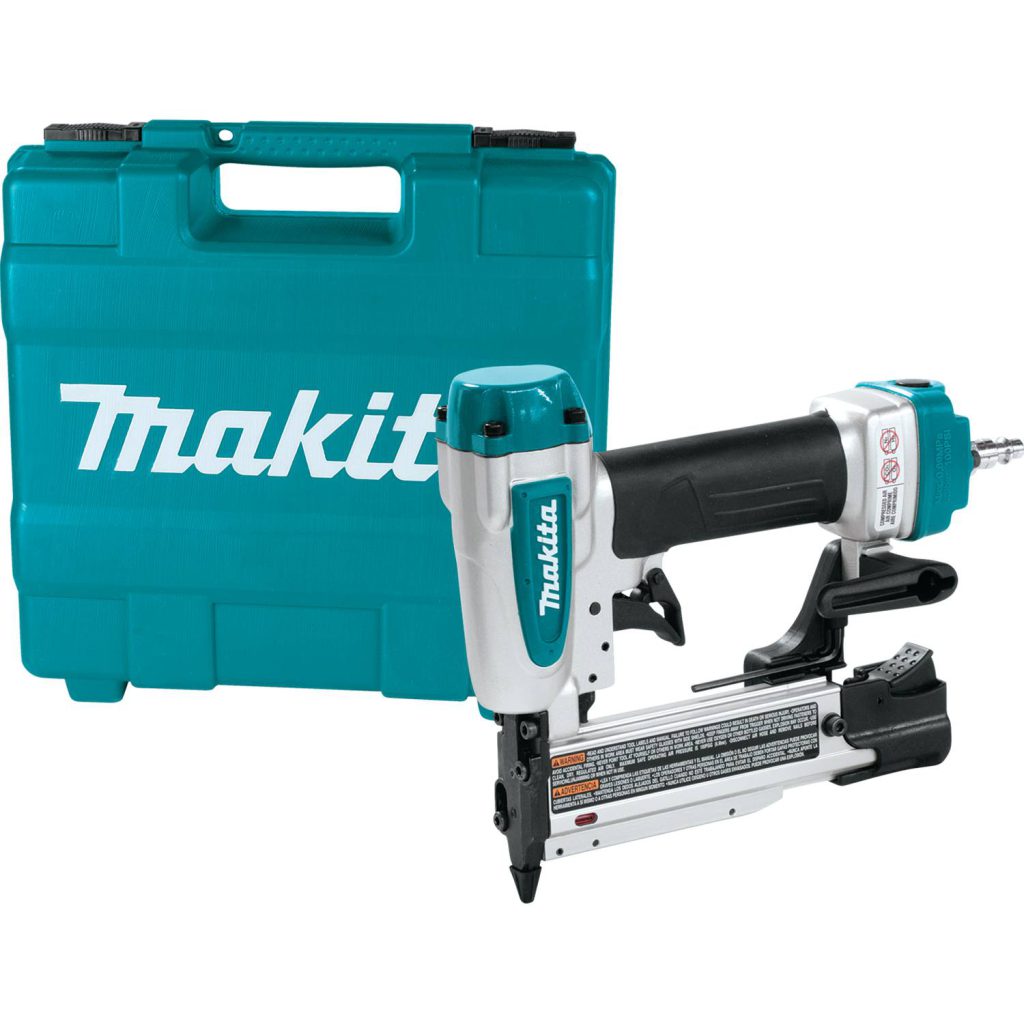

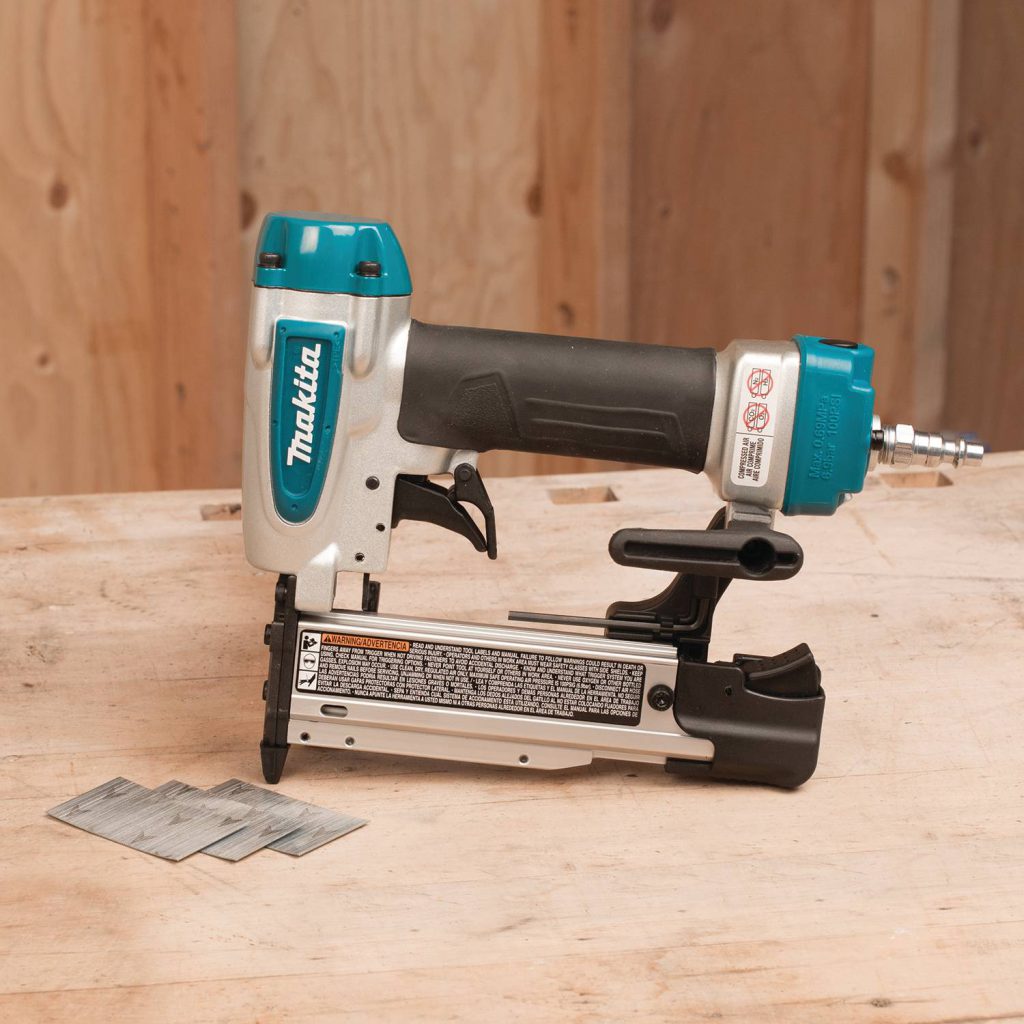

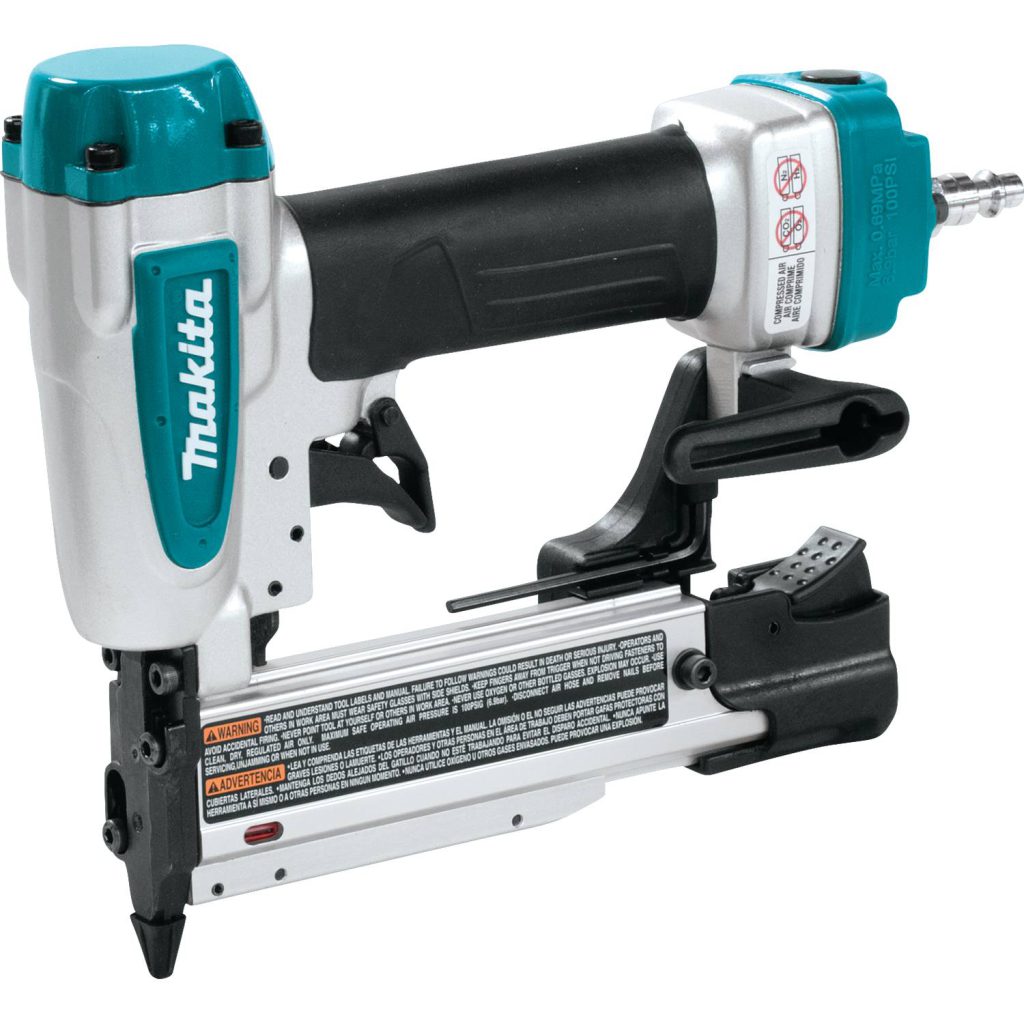

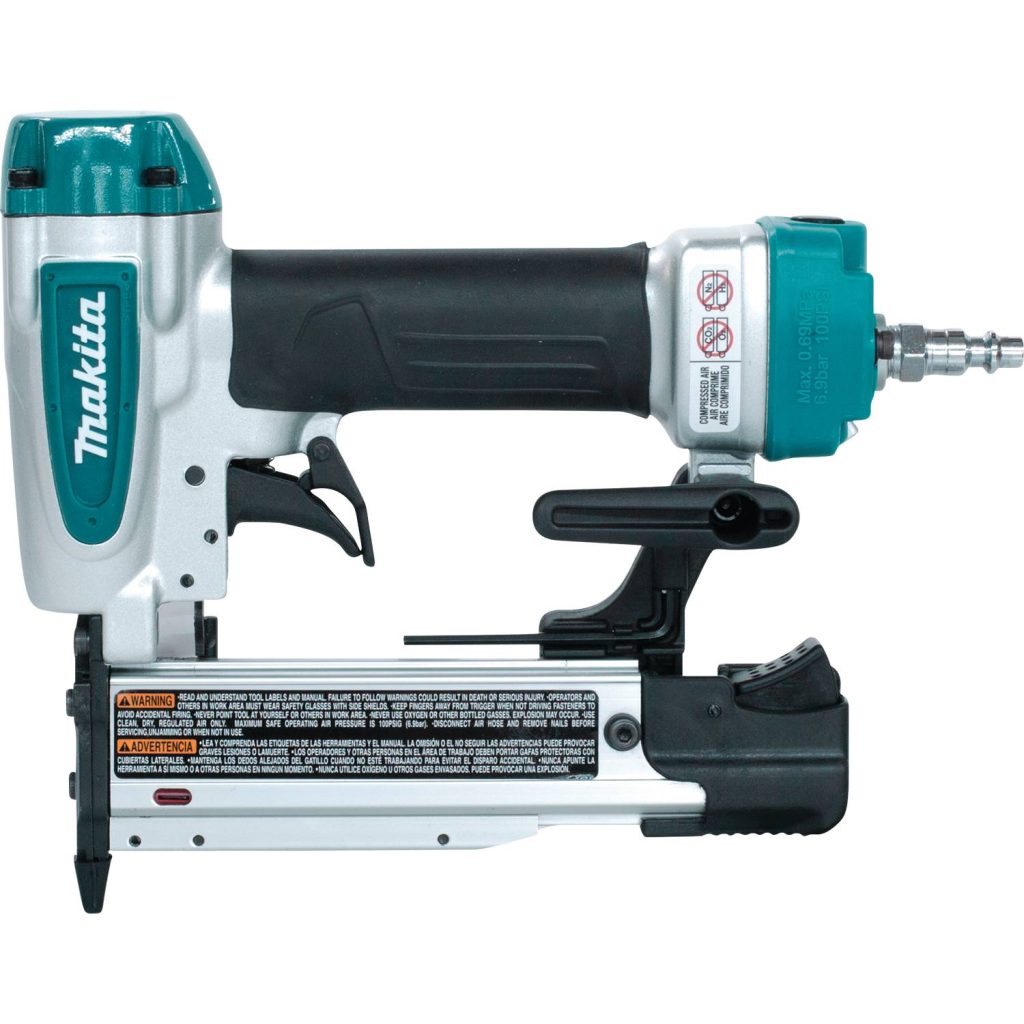

23 Gauge, 1-3/8″ Pin Nailer

SKU: AF353

BRAND: Makita

CONDITION: New

ORIGIN: China

0 review

On Backorder (Est. Delivery: Sep 10 - Sep 17)

$304.00 each

Case Qty: 4

My Selected Free Goods:
  • Fast & Secure Logistics
  • Free Shipping & 30-Day ReturnsEnjoy free standard shipping on most orders. Returns are accepted within 30 days of the original order date. Items must be in original packaging and unused condition.
  • Tiered Pricing RewardsUnlock discounts from 5% to 11% based on the separate 12-month rolling totals of your spending or your referrals' spending.
  • Redeem Points at Checkout Earn points exclusively when someone you refer places their first order. Points can be applied to your purchases once you reach a minimum balance of 2,500 points ($25 value). 100 points = $1.

Description

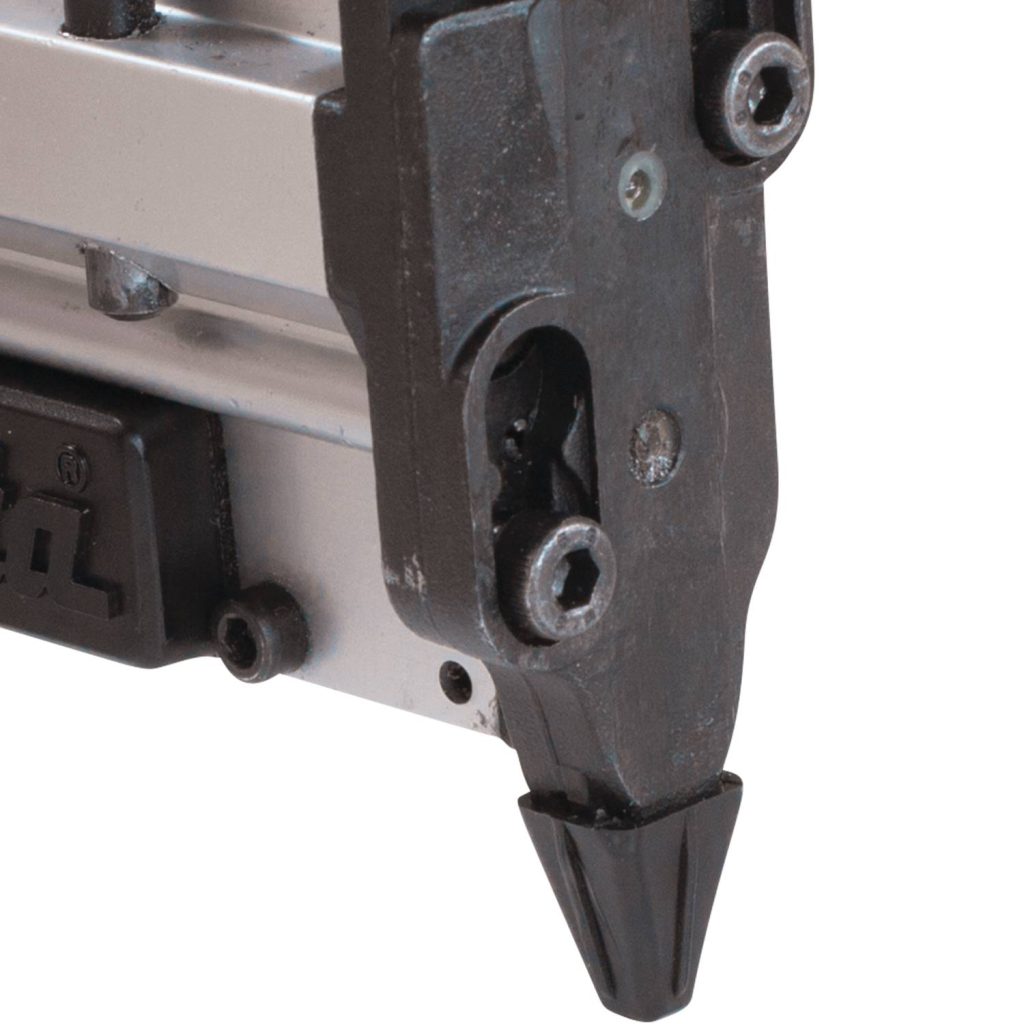

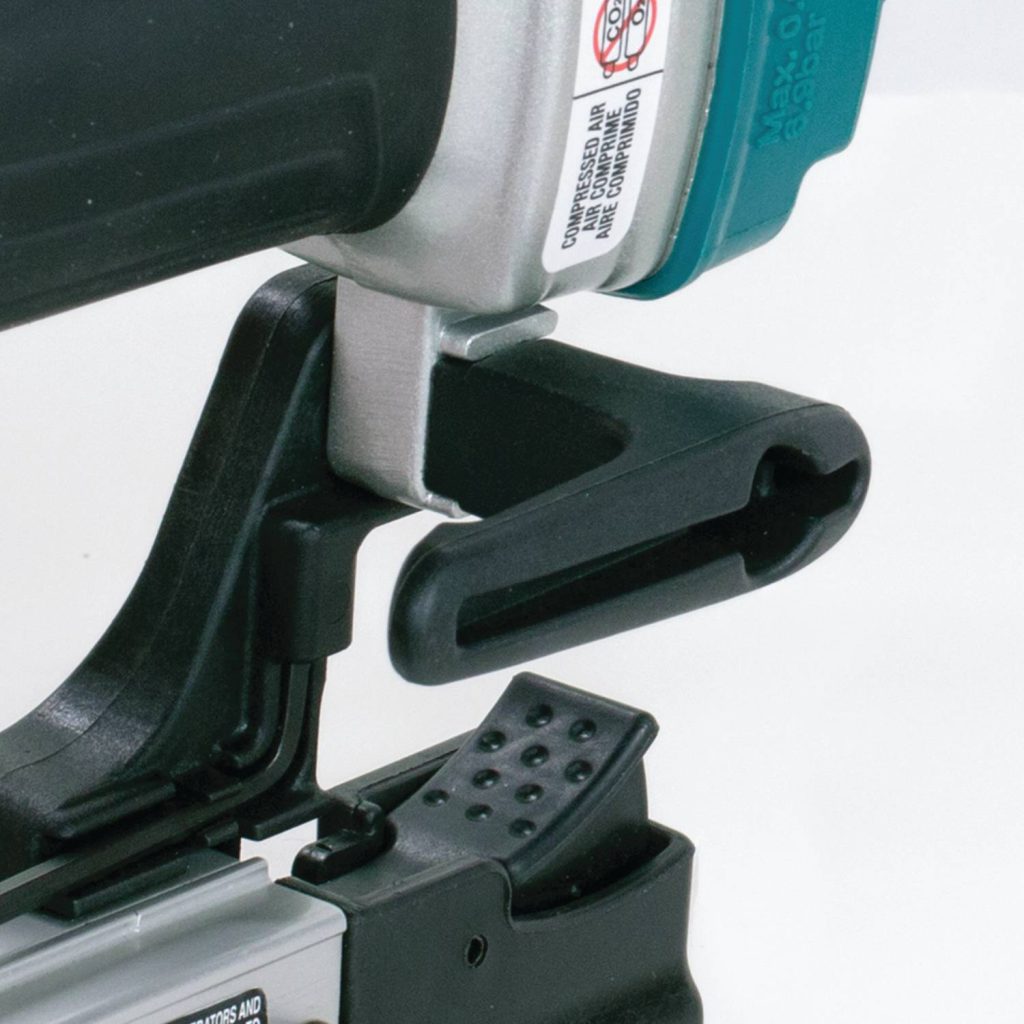

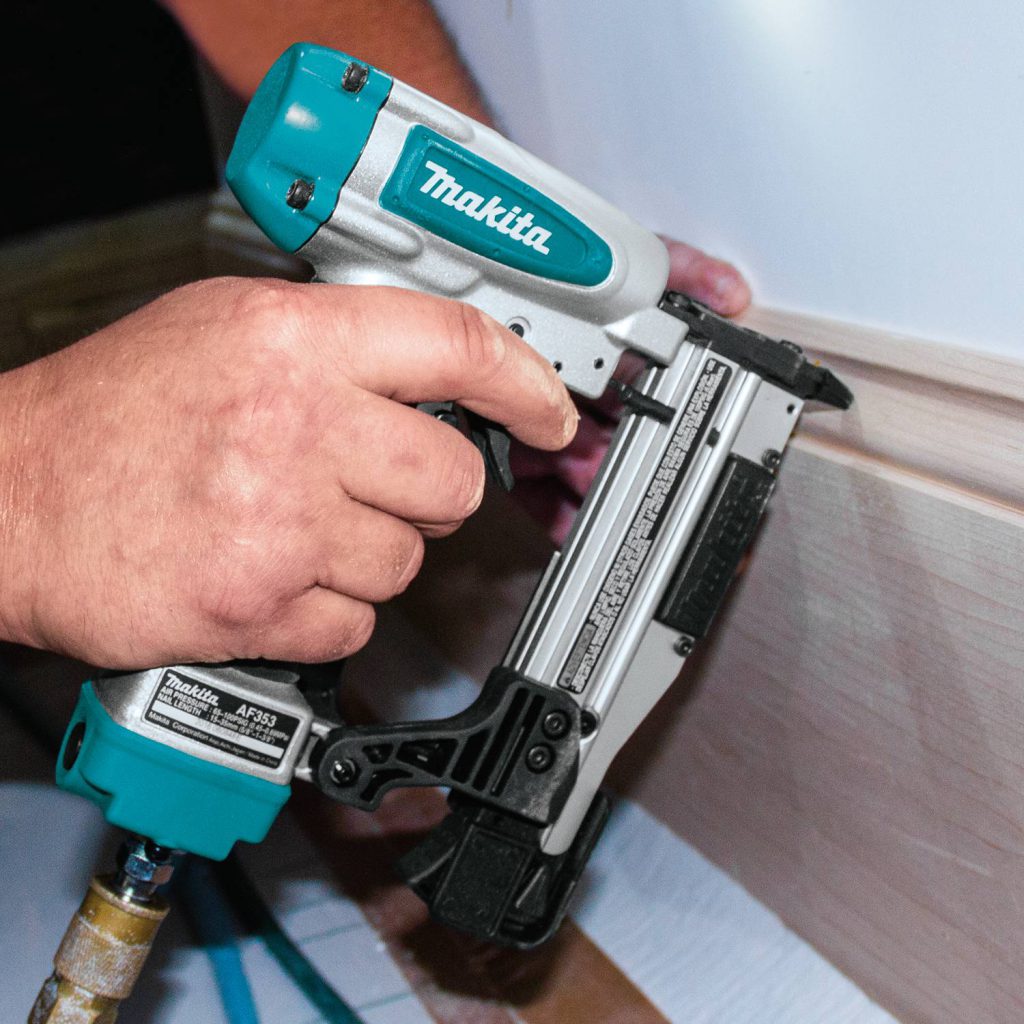

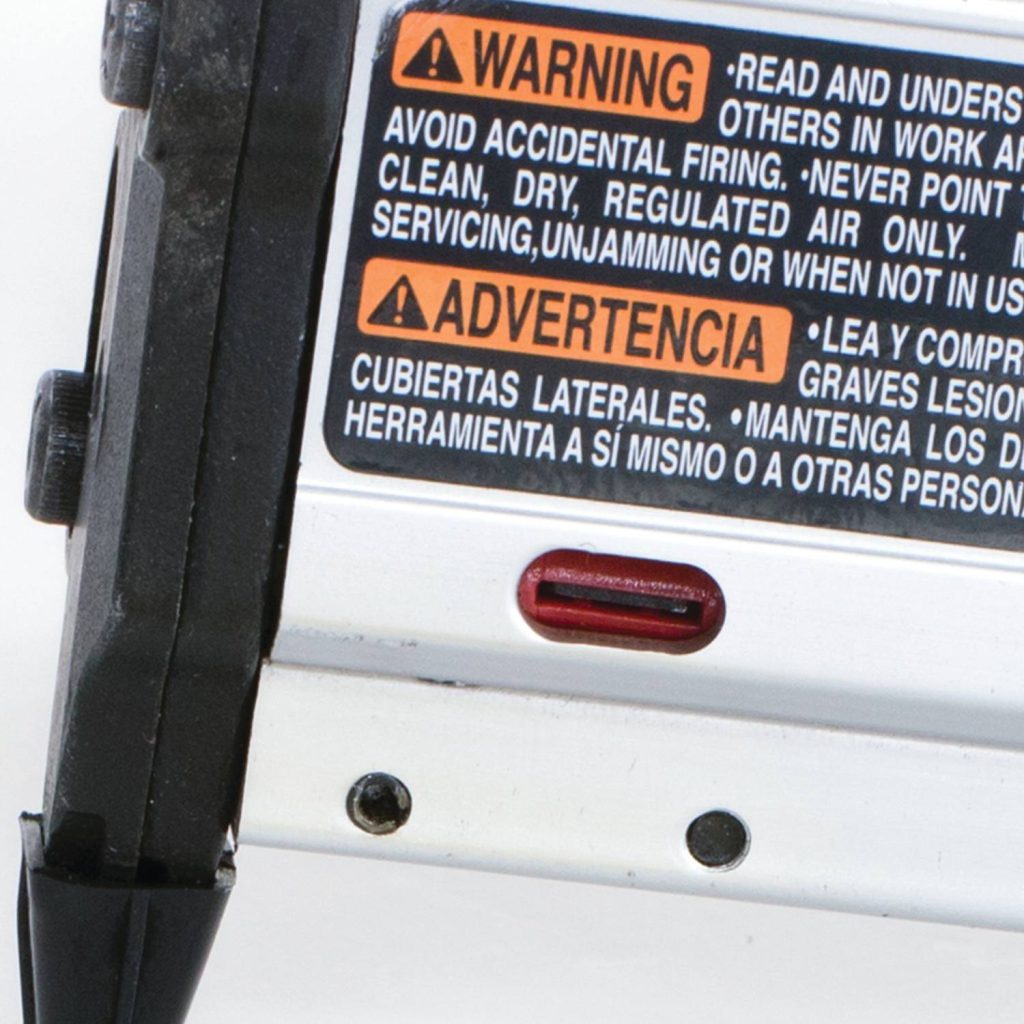

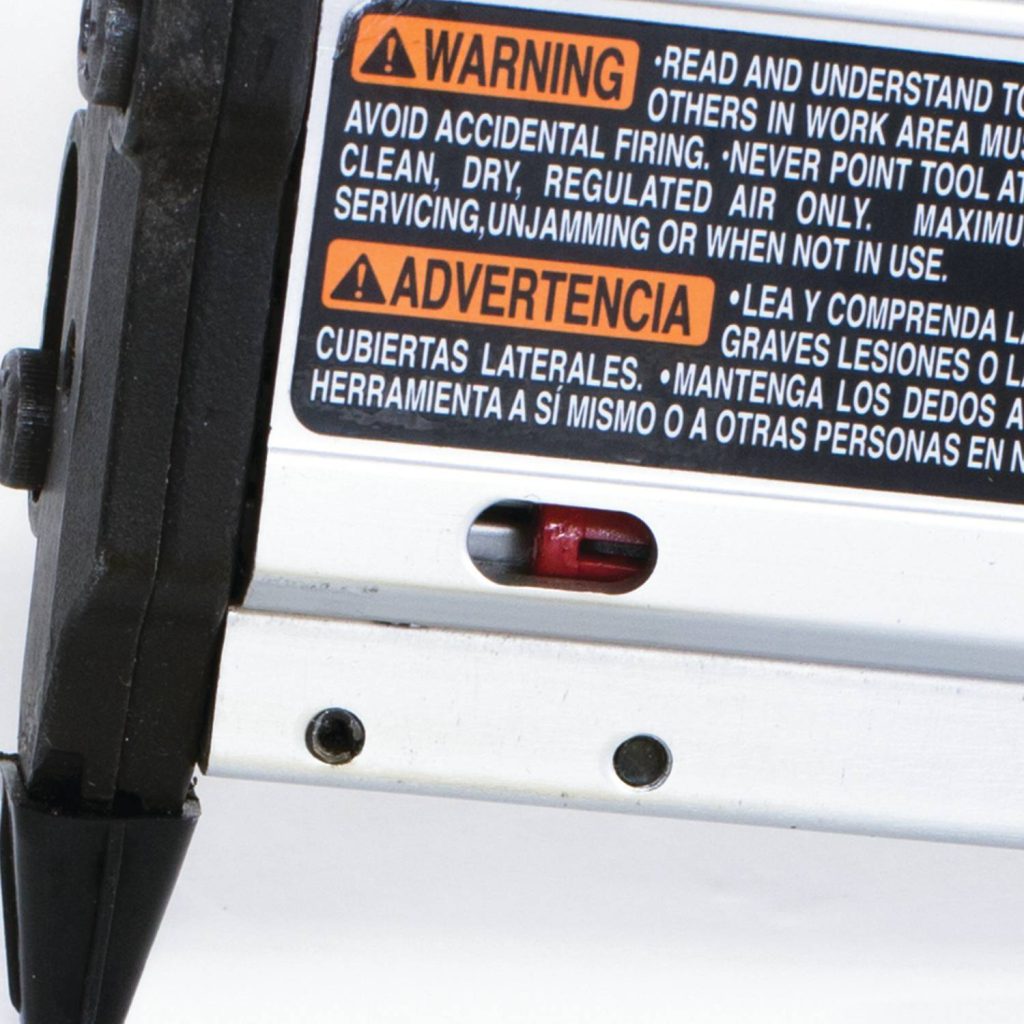

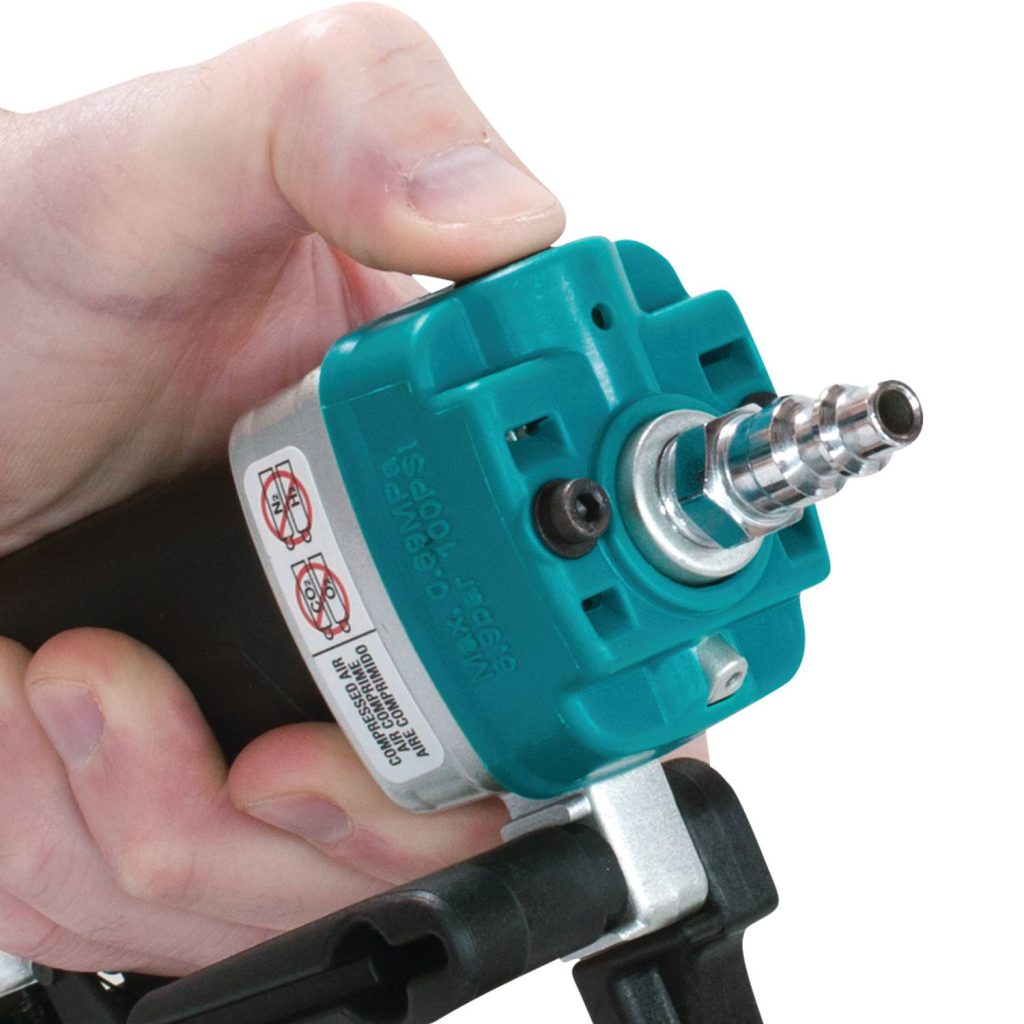

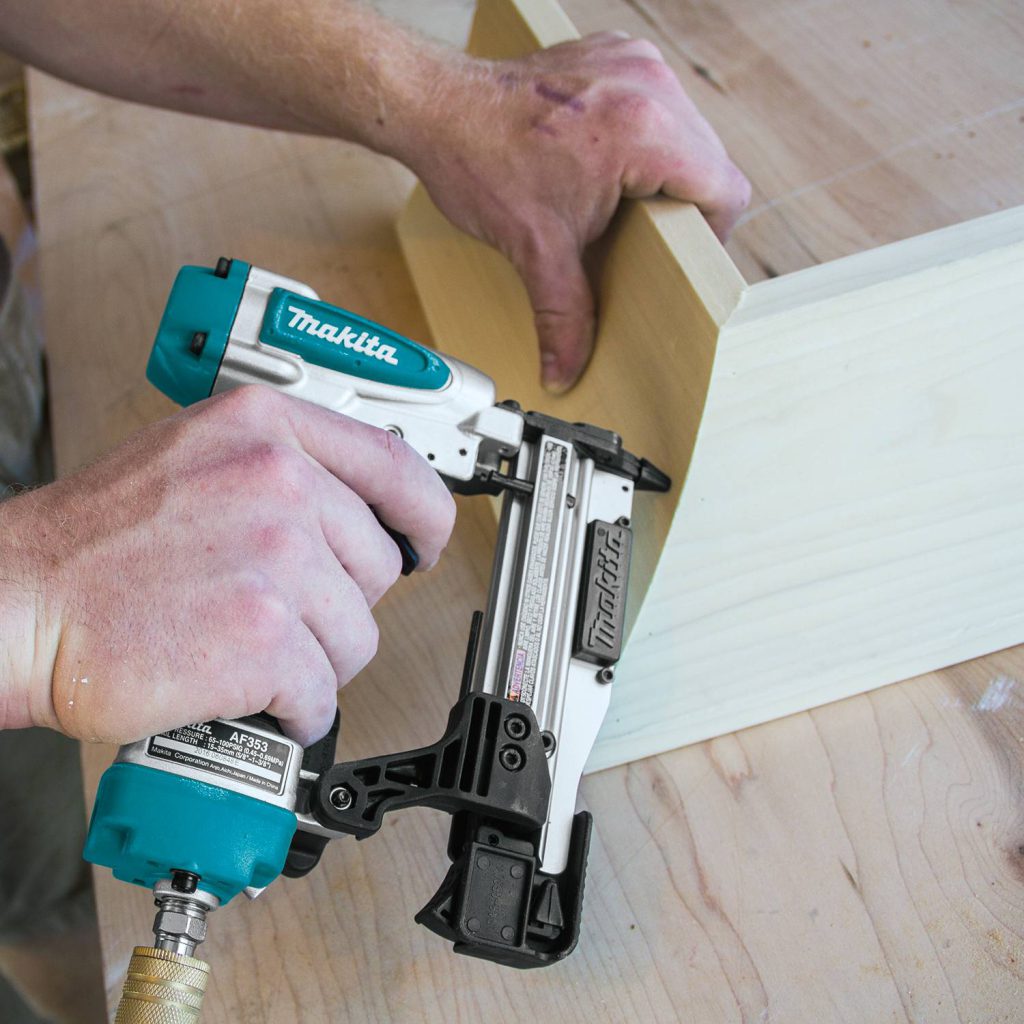

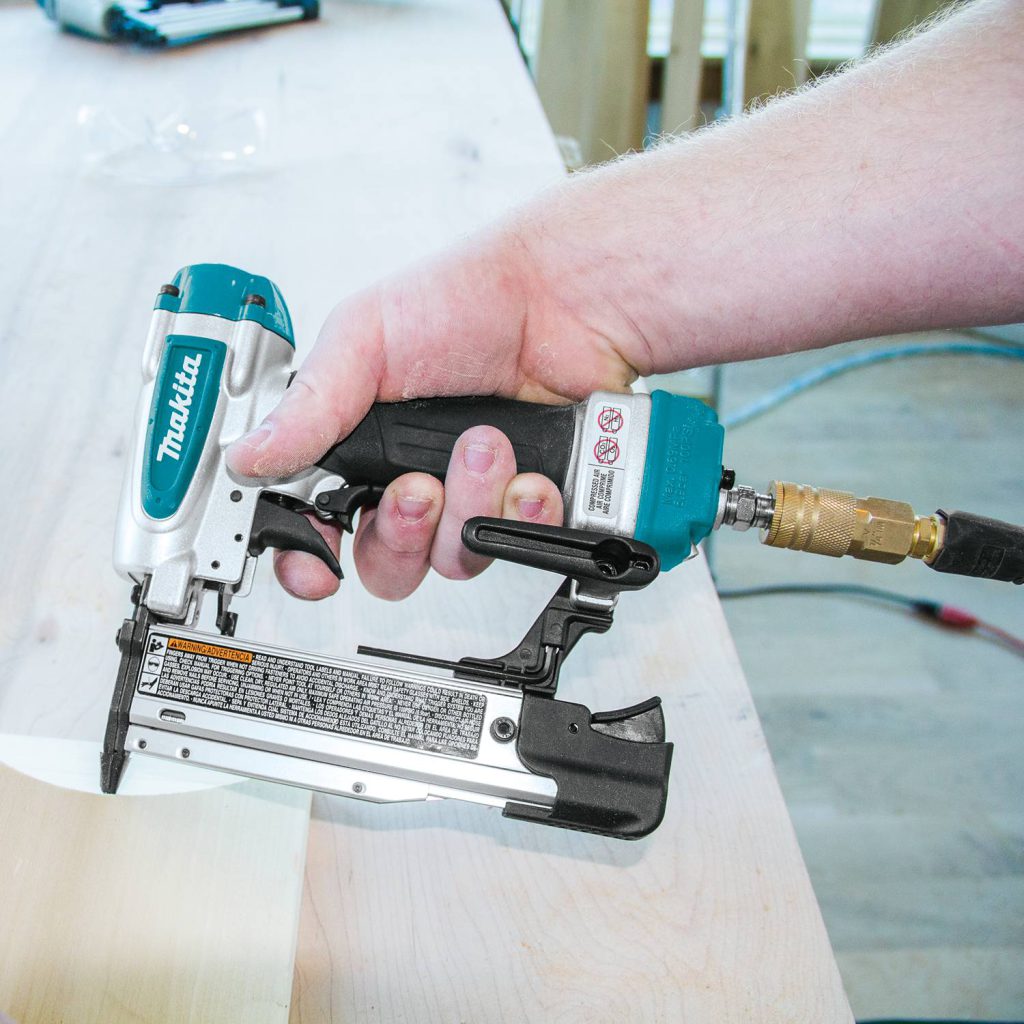

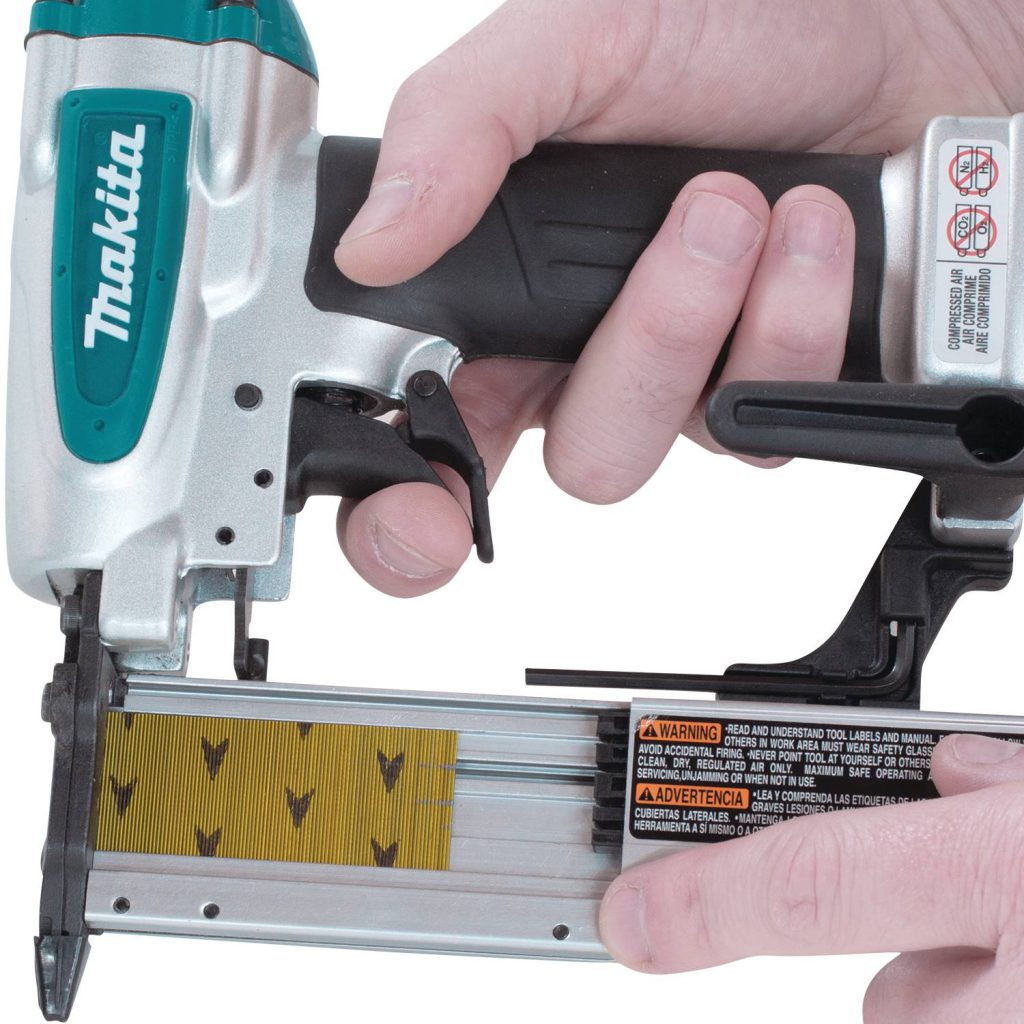

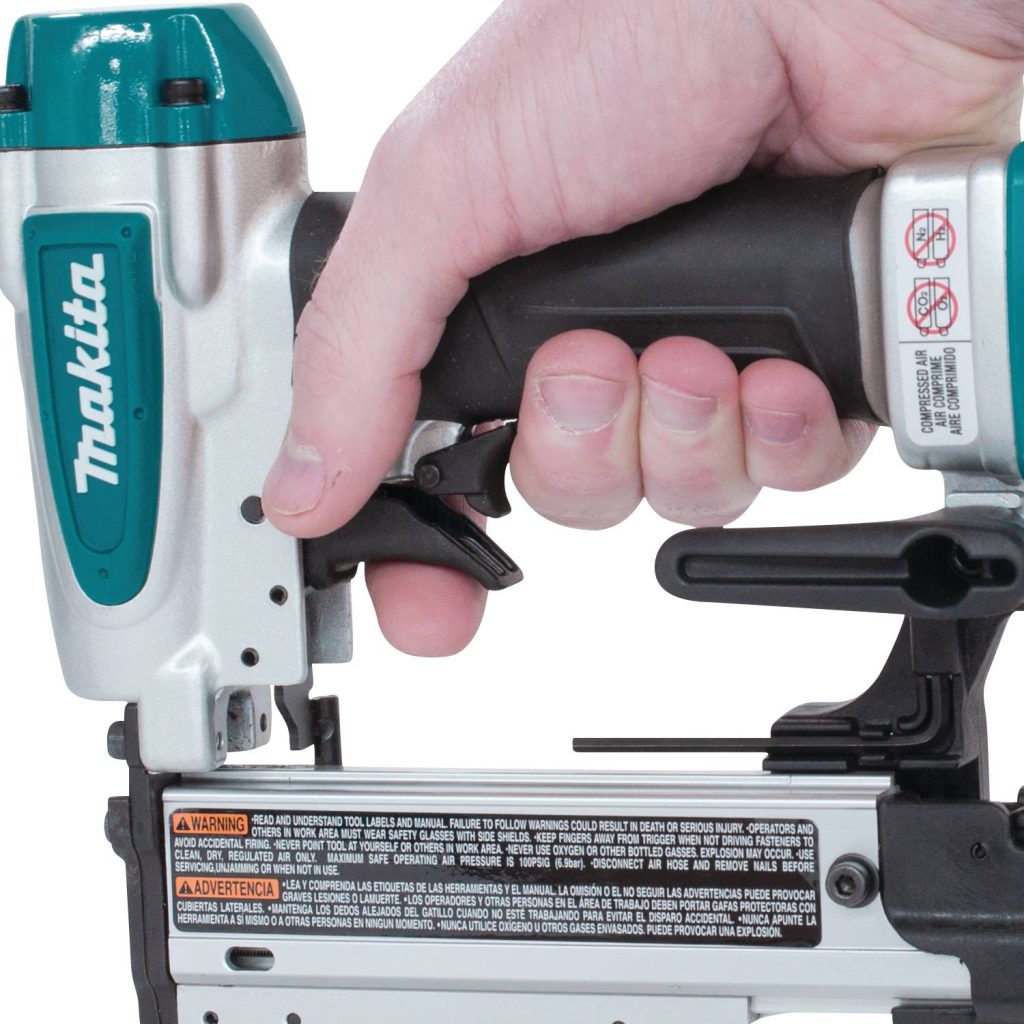

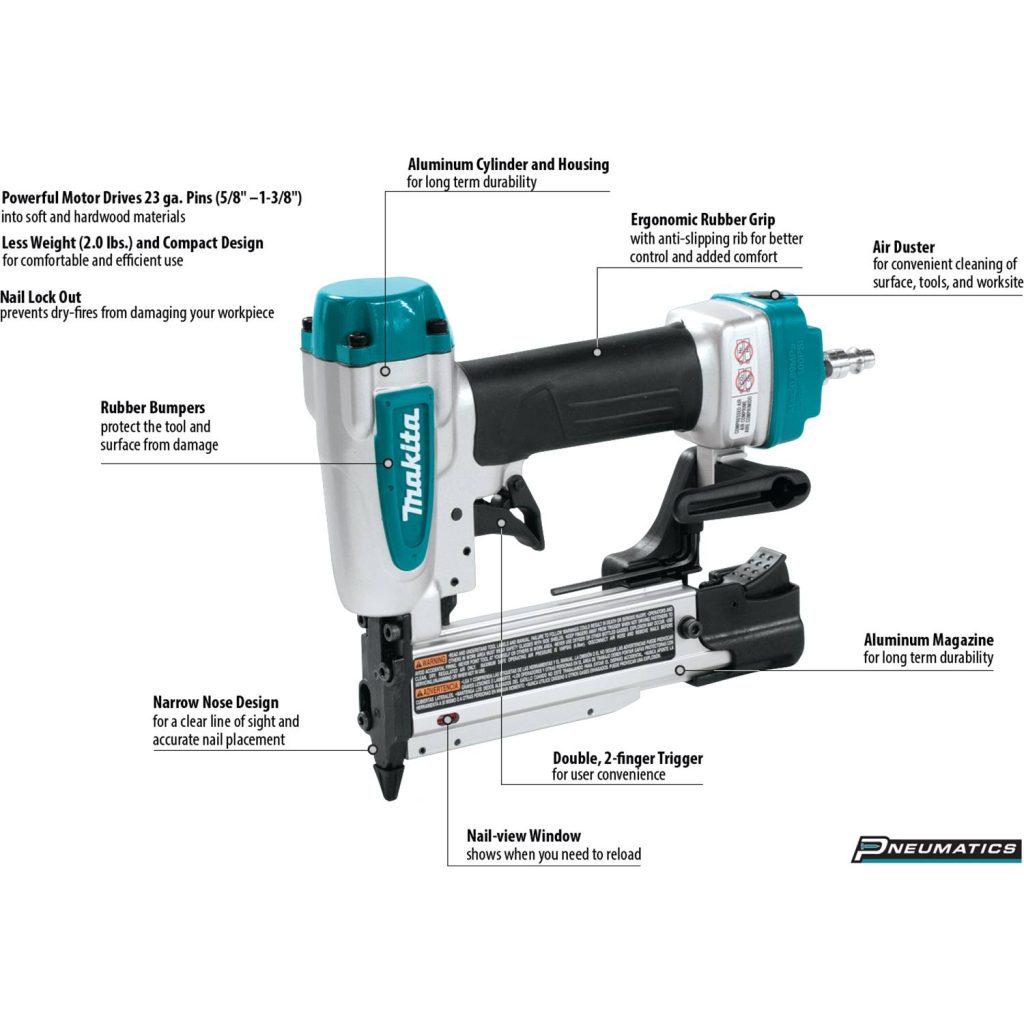

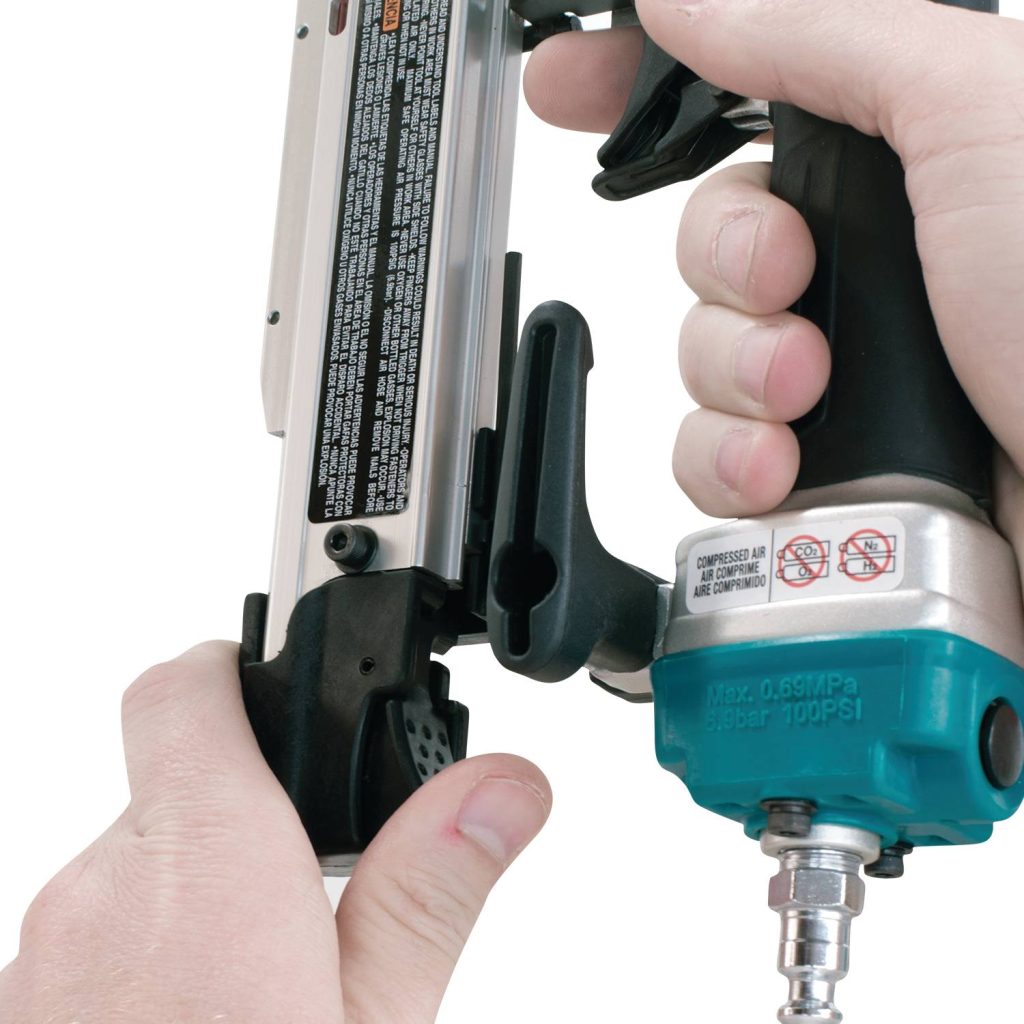

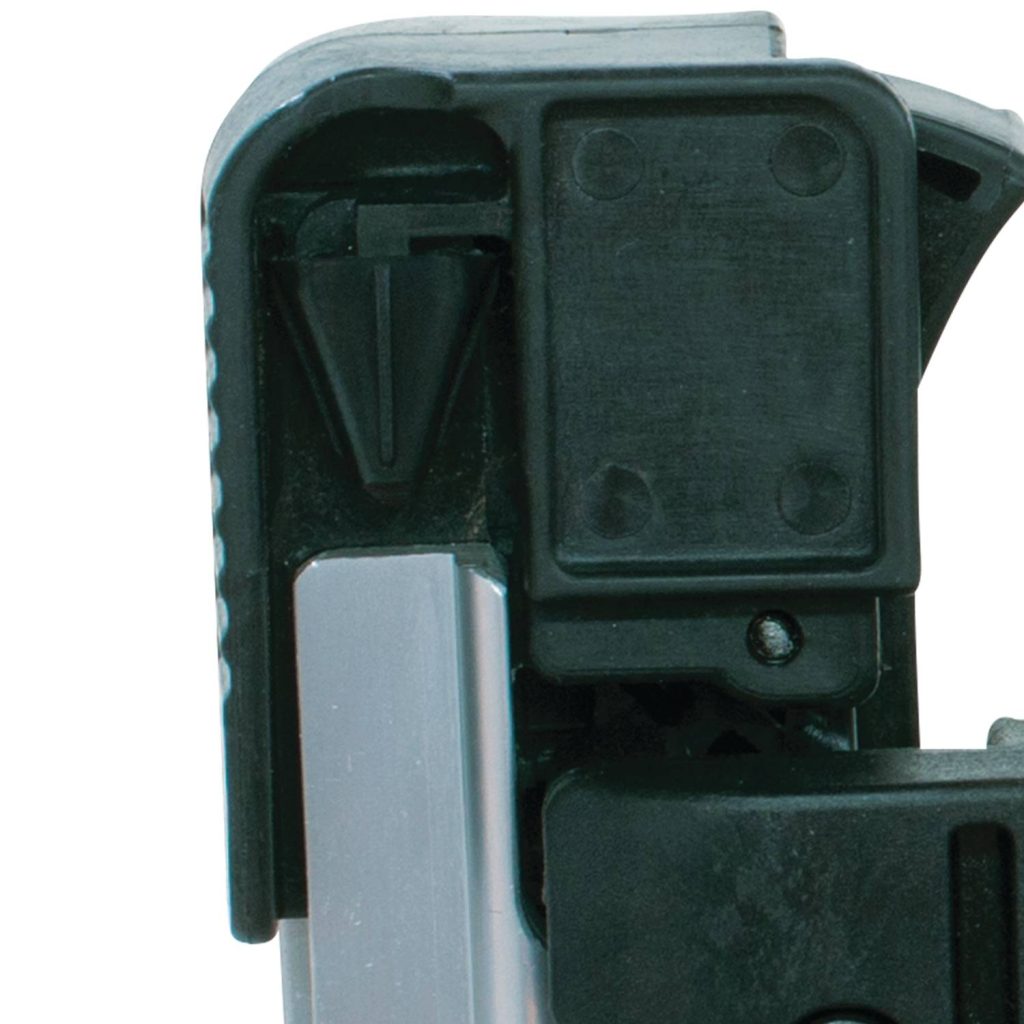

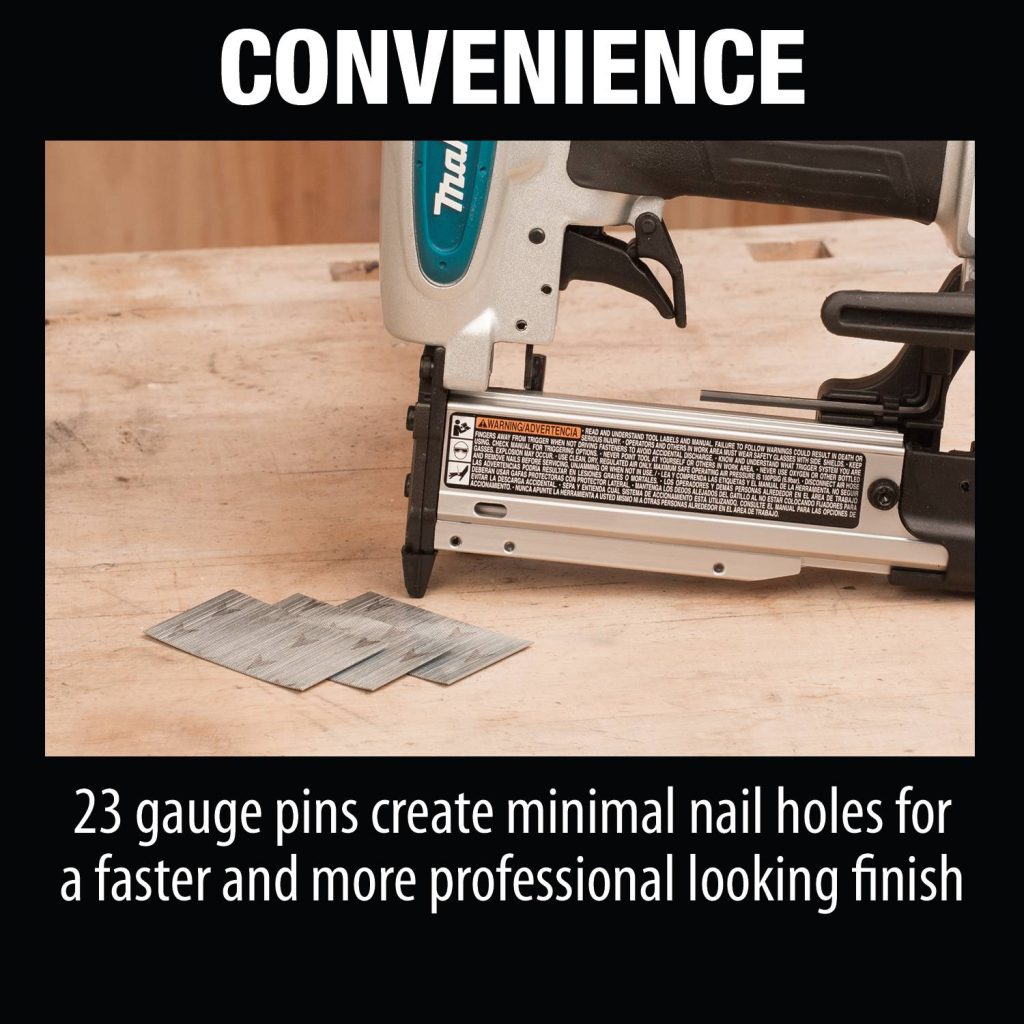

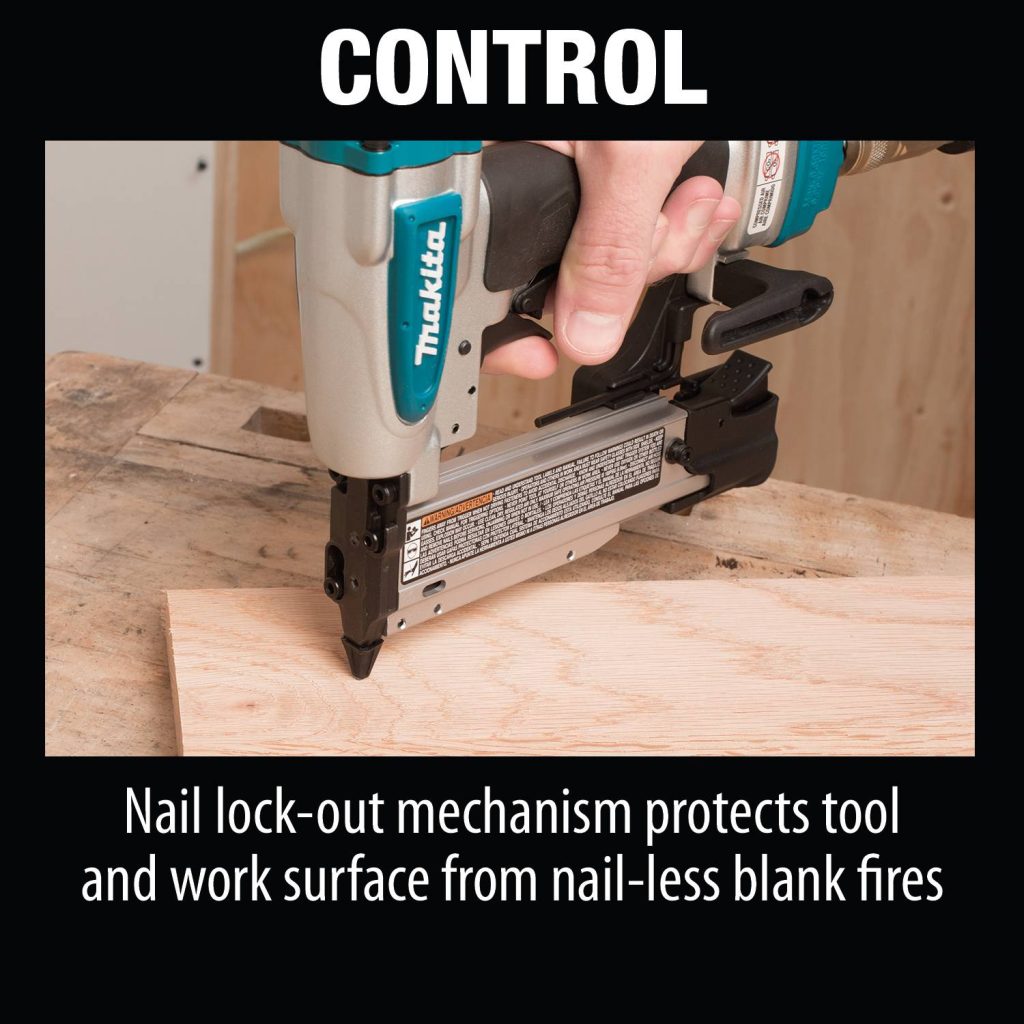

The Makita 23 Gauge Pin Nailer (model AF353) offers an array of features and powerful performance in a compact size. The AF353 has a side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16", and 1-3/8". The nail lock-out and red window alerts the user when to reload pins as the 2-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353 was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and 2 removable no-mar tips with sightlines for increased pinning accuracy.

Specs

Power Type Pneumatic
Operating Air Pressure (PSI) 65 - 100
Minimum Recommended Air Delivery .8 SCFM @ 90 PSI
Nail Size 5/8", 11/16", u00be", 1", 1-3/16", 1-3/8" (23 ga.)
Maximum Magazine Capacity 130
Fastening category Pin
Dimensions (LxWxH) 8-3/16" x 2-5/8" x 7-1/2"
Net Weight 2 lbs.
Shipping Weight 6.38 lbs.
Industrial Style Fitting Included 1/4" NPT x 1/4"
Inlet Size 1/4" NPT
Operating Air Pressure (Bar) 4.9 - 8.3
Air Fitting Included Yes

Documents

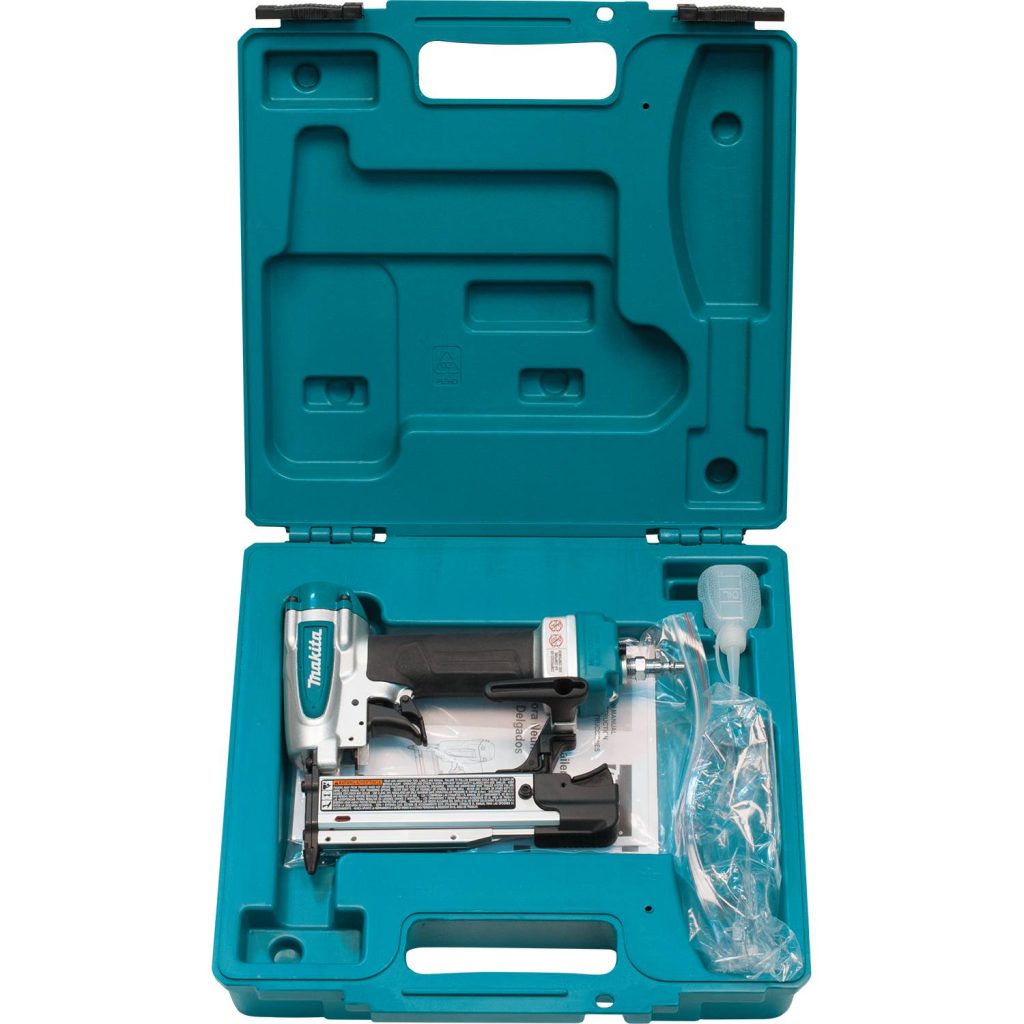

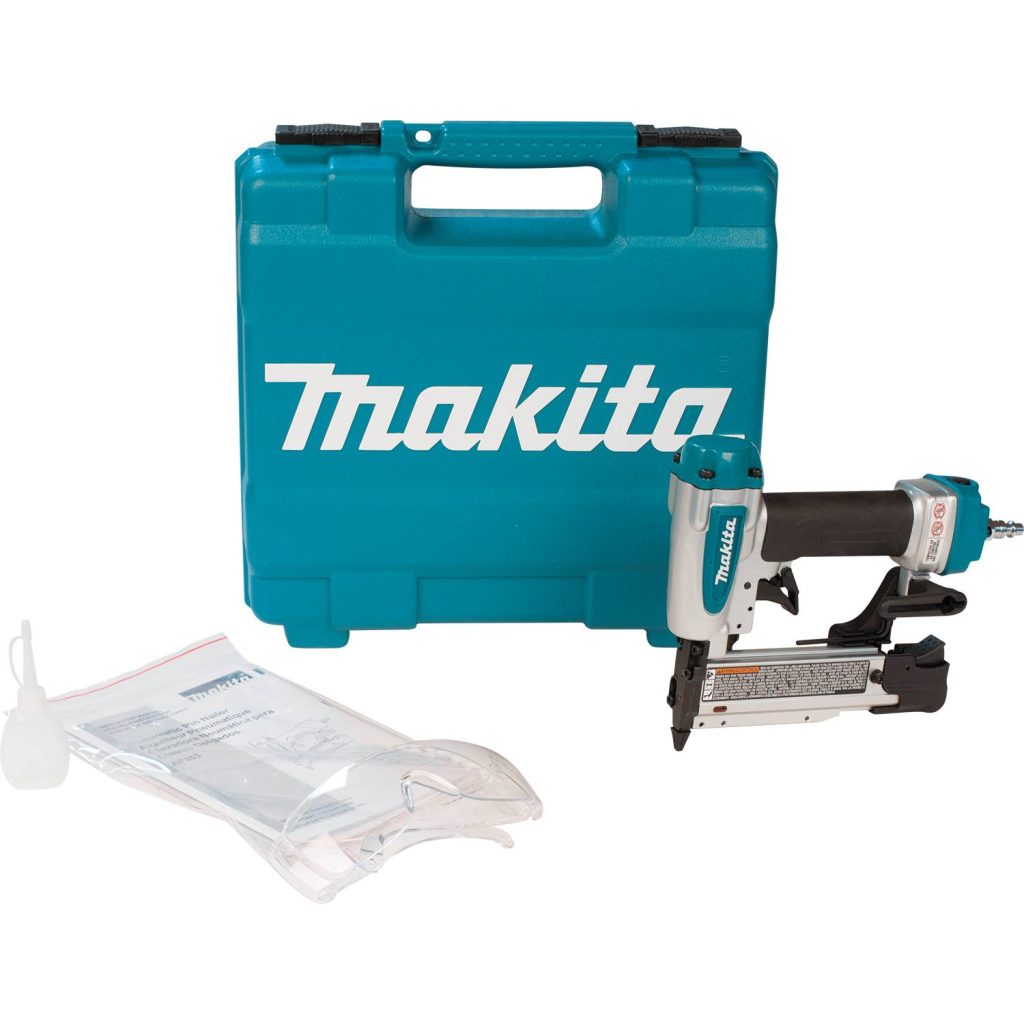

What's Included
